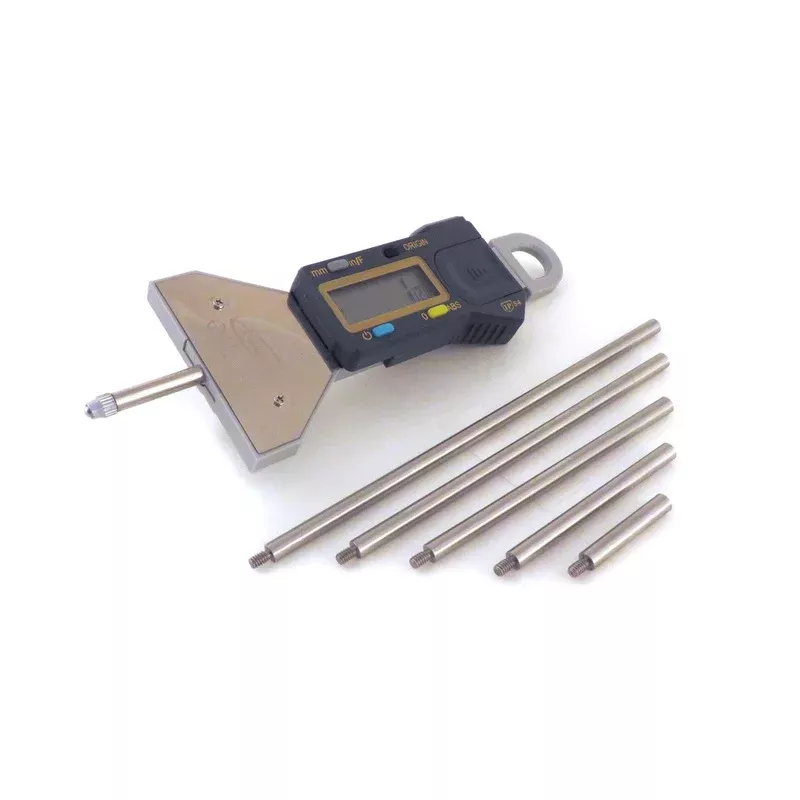

This compact depth gauge from iGaging is the perfect measuring tool to have in any shop. It can work as a depth gauge and also a digital indicator.
The Absolute Encoding Technology utilized in this electronic measuring device ensures precise measurements by memorizing the origin zero position. When powered off and on again, the LCD displays the actual sensor position, offering accurate and reliable readings. With a measuring range of 0-1″ (0-25mm) and a spring-loaded plunger featuring an interchangeable carbide-tipped point, this device boasts versatility.
Expand the measuring range up to 16″ by using the interchangeable 5 extension rods (5″, 4″, 3″, 2″, and 1″) with standard 4-48 threads. The inclusion of an SPC/USB data port enhances data management capabilities. The large digital display is easy to read and can be configured to show metric, decimal, or fractional units. The device offers a resolution of 0.0005″, 1/64″, and 0.01mm, ensuring high precision.
Additional features include an on/off function, automatic power-off after 5 minutes of non-use, and the ability to set incremental zero at any point within the overall range of measurement. This device serves dual purposes as a depth gauge or digital indicator. Its IP54 dust and moisture resistance make it suitable for various environments. With unlimited measuring speed and a mounting lug on the back for use as a dial indicator, this electronic measuring tool is a versatile and reliable solution for precise measurements in diverse applications.
Specifications:
- Absolute encodingtechnologythat memorizes origin zeroposition. When unit is powered off and then on again,LCD displays actual sensor position
- Electronicmeasuringrange of 0-1″ (0-25mm)
- Spring loaded plunger
- Interchangeablecarbide tipped point
- Overall measuring range of 0-16″ using theinterchangeable5 extension rods (5″, 4″, 3″, 2″ and 1″) with standard 4-48 threads
- SPC/USB data port.
- Large easy to read digital display which can be setto display in metric, decimal or fractions
- Resolution: 0.0005″, 1/64″ and 0.01mm
- Accuracy: 0.001″ per 1″
- On/off function
- Powers off after 5 minutes of non-use
- Once origin zero is set can set incremental zero at any point within the overall range of measurement
- Can be used as a depth gauge ordigitalindicator
- IP54 dust and moistureresistant
- Unlimited measuring speed
- Mounting lug on back so can be used as a dial indicator
