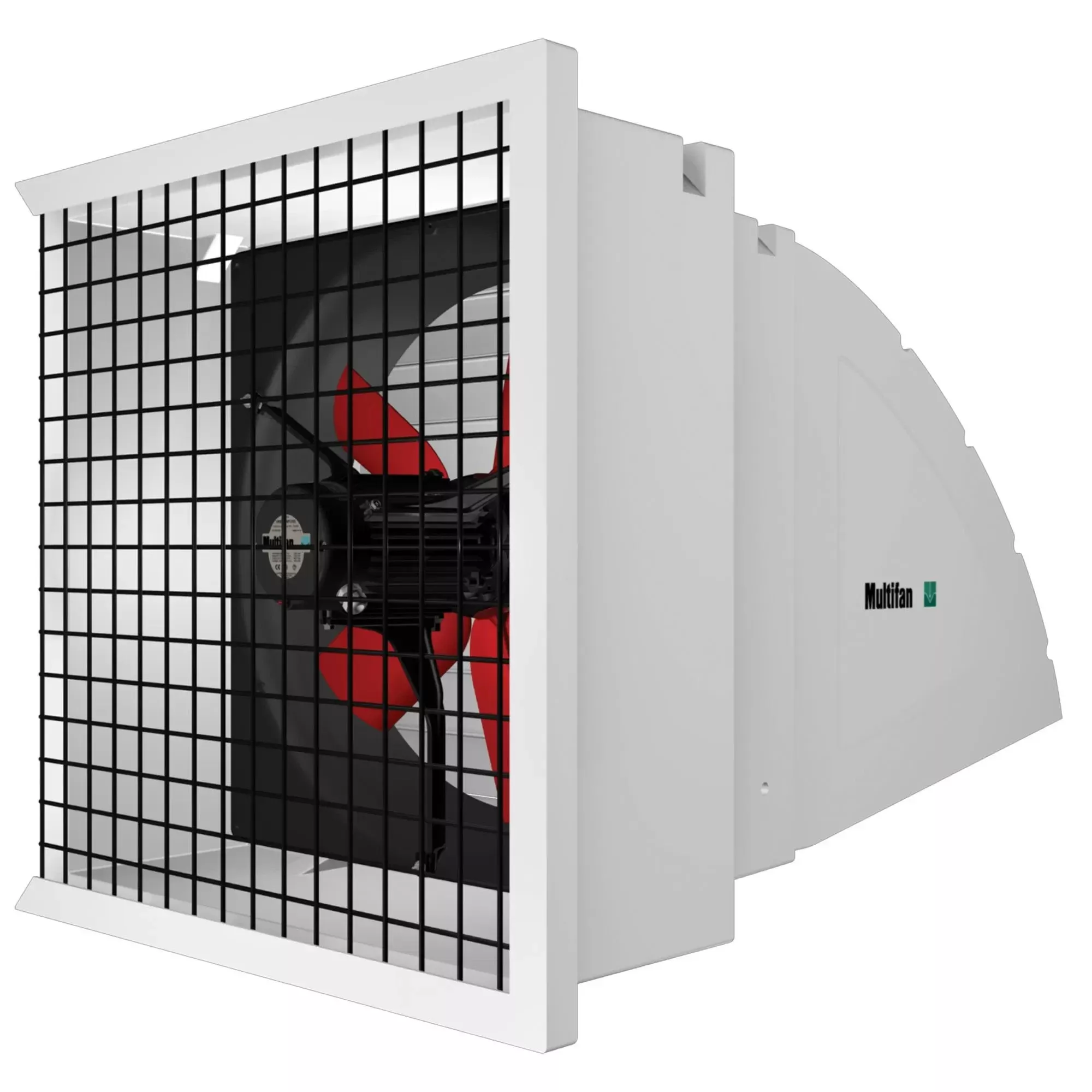

Multifan System 1 Fans240V

More about Multifan System 1 Fans240V

Ideal for pit openings, greenhouses, poultry houses and livestock buildings, Multifan System 1 Fans are equipped with a thermally protected, variable speed motor that performs in harsh conditions. Includes an axial-fan, UV protected polyethylene hood, shutter and wireguard. Easy to clean, the fans are wash down capable and may be mounted in a variety of positions. These 240-volt fans are easy to install using a simple click system.

These fans may be controlled by a thermostat, we recommend the T-15 WD Multifan Thermostat, QC Part 10001 or the T-15-2 Two Stage Thermostat, QC Part 10960.

Features:

• Mount in a variety of positions
• TEAO (Totally Enclosed, Air Over) electric motor
• Thermally protected motor is wash down capable and will perform in the most difficult conditions
• 3-year warranty on Models 4E30Q to 6E63Q
• Includes: Axial-Fan, Polyethylene Hood and Shutter
• Variable speed motor can be controlled with thermostat or by electronic control
• Standard Style motors and arms are available up to 4E45 18″

Options Available:  120V Panel Fans and 240V Panel Fans.

Replacement parts available.

QC Part	Model	Size	Voltage	CFMs 0″ SP	.05″ SP	.10″ SP	Nominal RPM	Amps	R.O.
10255	4E25	10	120	870	825	790	1,715	.90	19 1/4″
10256	4E30Q	12	120	1,420	1,360	1,322	1,645	1.10	19 1/4″
10257	4E40Q	16	120	2,668	2,550	2,430	1,500	2.30	23 1/4″
10258	4E45Q	18	120	3,716	3,600	3,508	1,600	3.00	25 1/4″
10259	4E50Q	20	120	4,524	4,320	4,245	1,565	4.00	27 1/4″
10260	6E63Q	24	120	6,495	6,300	6,150	1,020	5.60	31 1/4″
10248	2E25	10	240	1,210	1,160	1,130	3,200	.90	19 1/4″
10249	2E30Q	12	240	1,880	1,840	1,790	3,200	1.40	19 1/4″
10250	4E40Q	16	240	2,640	2,520	2,410	1,600	1.10	23 1/4″
10251	4E45Q	18	240	3,400	3,250	3,090	1,600	1.50	25 1/4″
10252	4E50Q	20	240	4,310	4,140	3,960	1,600	2.00	27 1/4″
10253	6E63Q	24	240	6,330	6,070	5,790	1,000	3.10	31 1/4″
